[IN-STOCK] LUMINKEY80 80% Custom Mechanical Keyboard
-
Order now and the parcel will arrive you onJul 30 - Aug 03
-
We cooperate with DHL/FedEx, orders will be shipped within 3 business days. (Shipping Rate and Policy)
![](http://www.luminkey.com/cdn/shop/files/luminkey80-banner-2.jpg?v=1693985142&width=360)
LUMINKEY80
Elevate Your Workspace, Simplify Your Style.
· Tri-mode (2.4G, wireless, wired)
· WIN/MAC layout switch
· Hot-swappable
· 80% ISO/ANSI Layout
· VIA support
· CNC Aluminum Body
Vendor List
Spec
Latency data
- Wired: 2 millisecond
- 2.4G: 6 millisecond
- Wireless: 40 millisecond
Polling rate
- Wired: 1000Hz
- 2.4G: 1000Hz
- Wireless: 125Hz
Spec
- Size: 359x136x19mm
- Typing Angle: 7°
- Layout: 80% TKL ANSI/ISO
- Mounting: Gasket Mount
- Programming Support: VIA
- Cable type: Type-C Data Cable
- Switches: LUMINKEY Sylva Linear Switches
- Stabilizer: Gateron Stabilizers
- Connectivity: Wireless/2.4G/Wired
- Compatible System: Windows/MacOS
- PCB: 1.6mm Hot-swap
- Plate: 1.5mm PC Plate
Material
- Case: 6063 CNC Aluminum
- Weight: Copper
- Badge: Copper

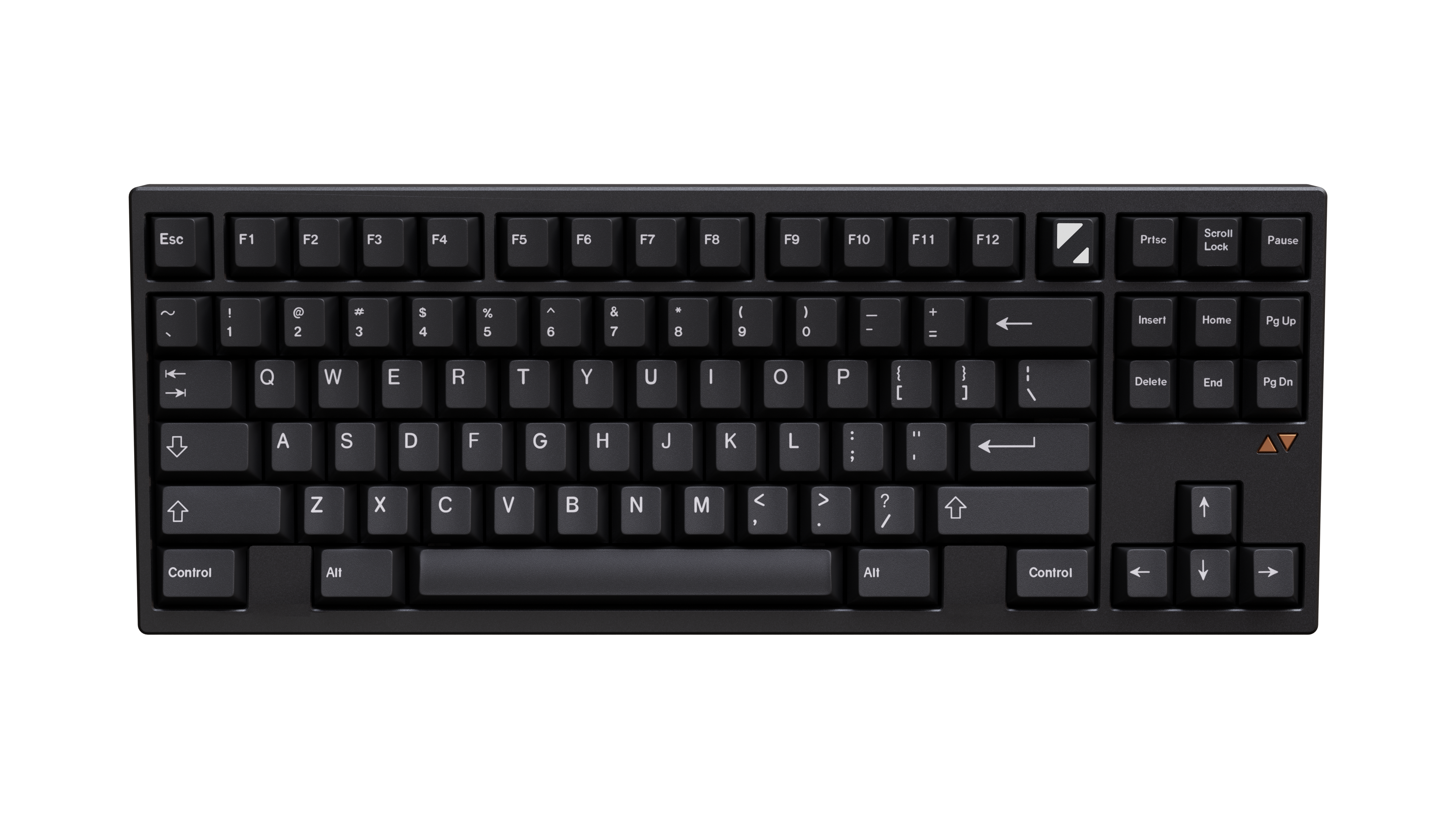

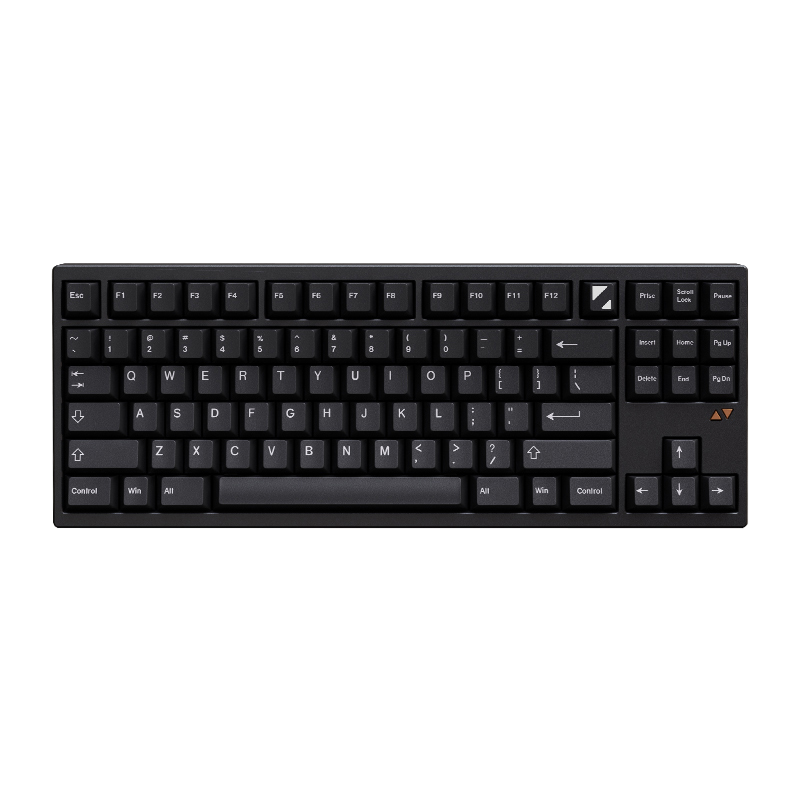

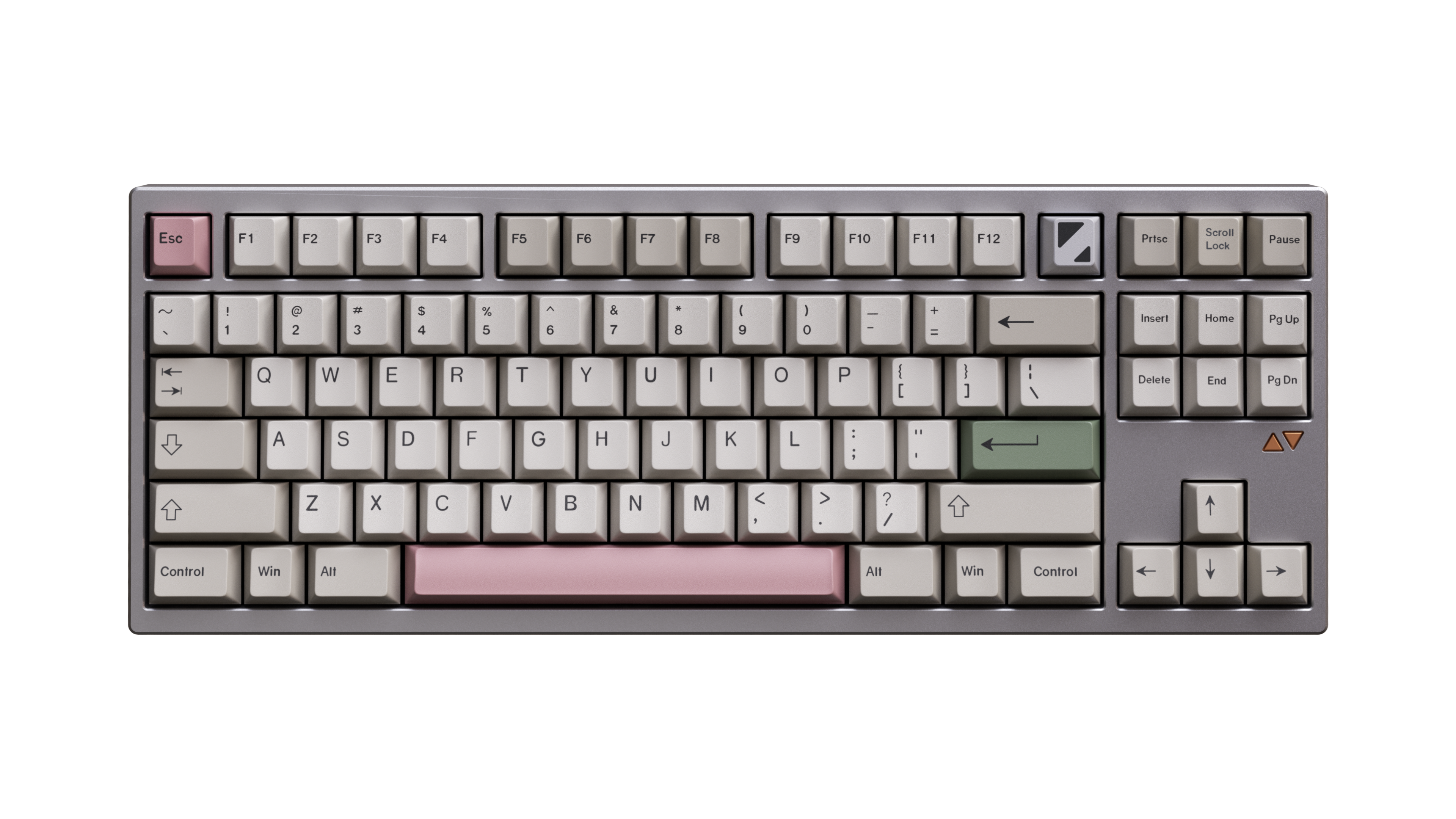

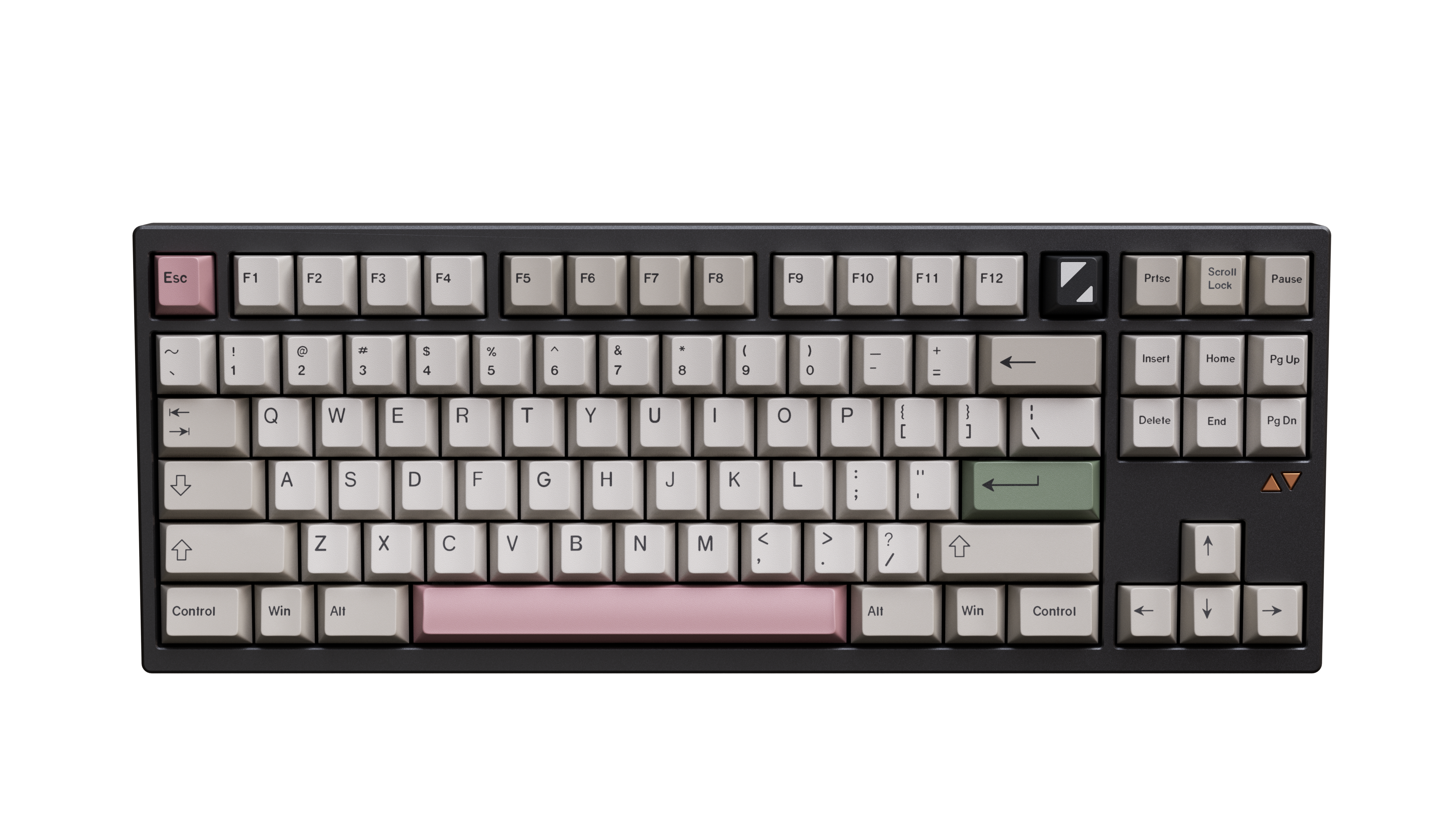

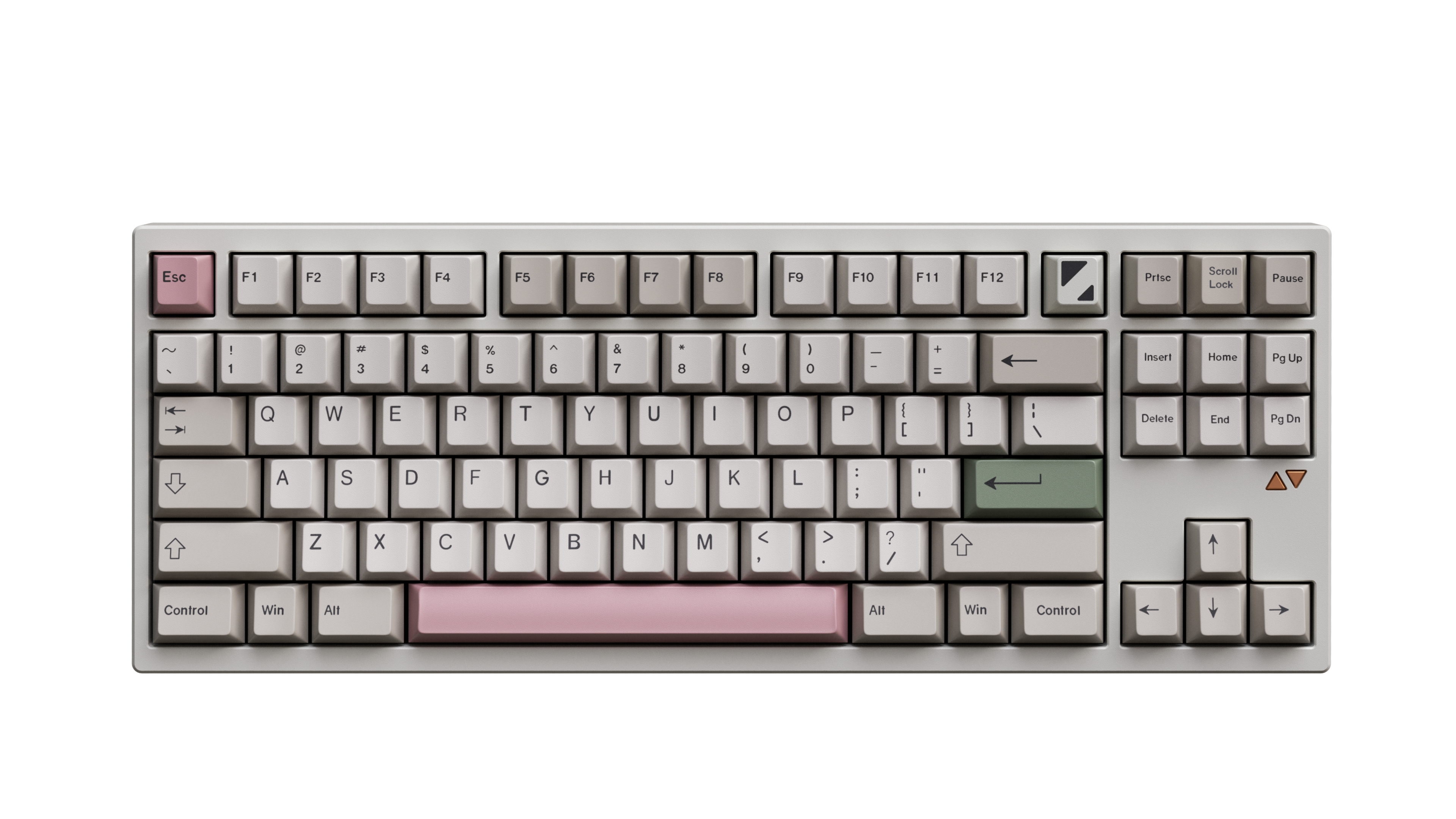

- Keycaps: PBT Double-shot Keycaps (WOB/9009)

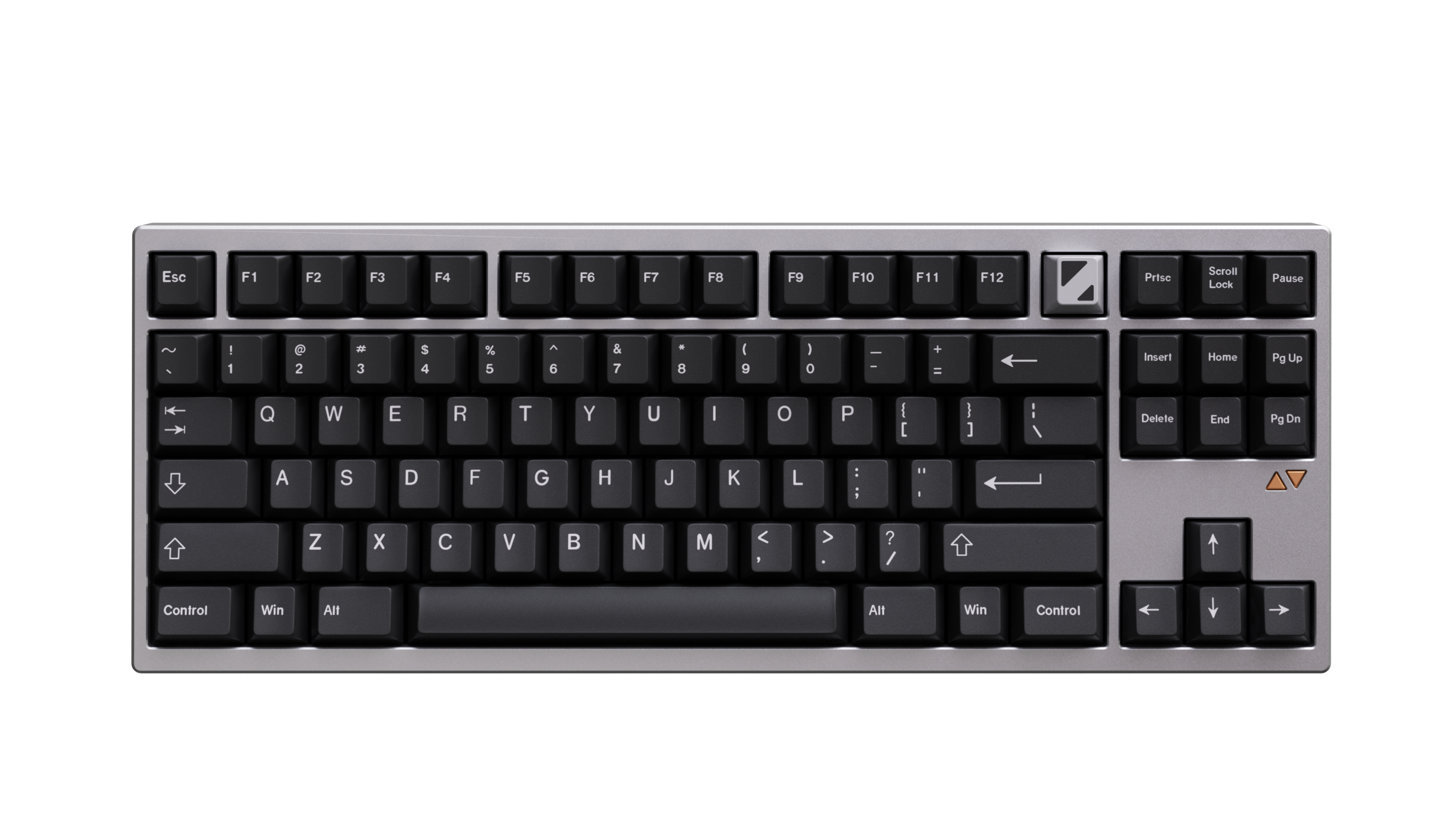

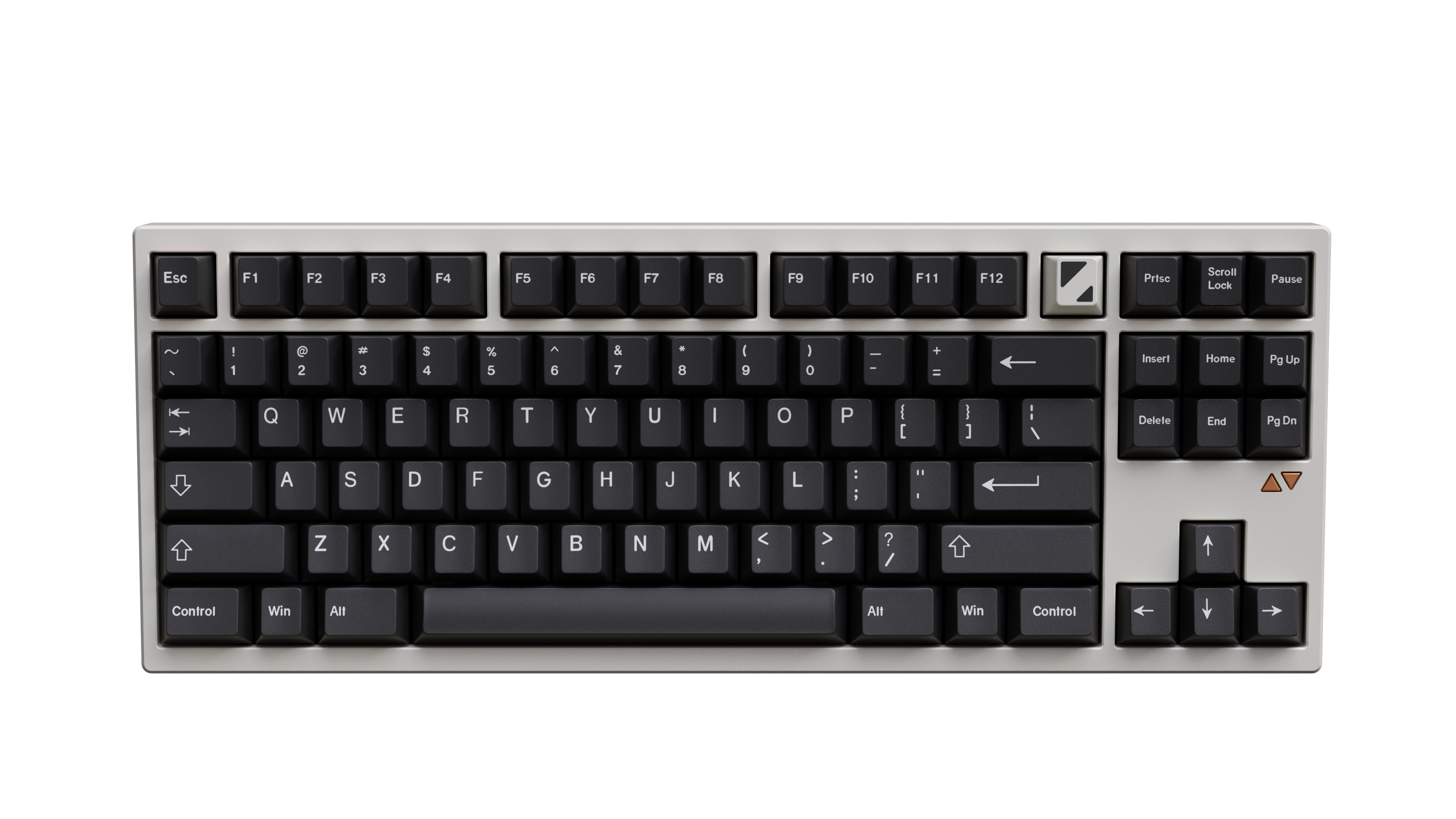

- Color: Ano-Black/ Ano-Silver/ E-Retro White
Packing List
Pre-Built Kit:
- 1*top case,
- 1*bottom case,
- 1*copper weight,
- 1*copper badge,
- 1*pcb,
- 1*type-c daughter board,
- 1*plate,
- 1*foam kit,
- 1*switch puller&keycaps puller,
- 1*screwdriver,
- 1*USB cable,
- 1*aluminum artisan keycap,
- 1*dongle
- a set of stabilizer
- a set of switches,
- a set of keycaps

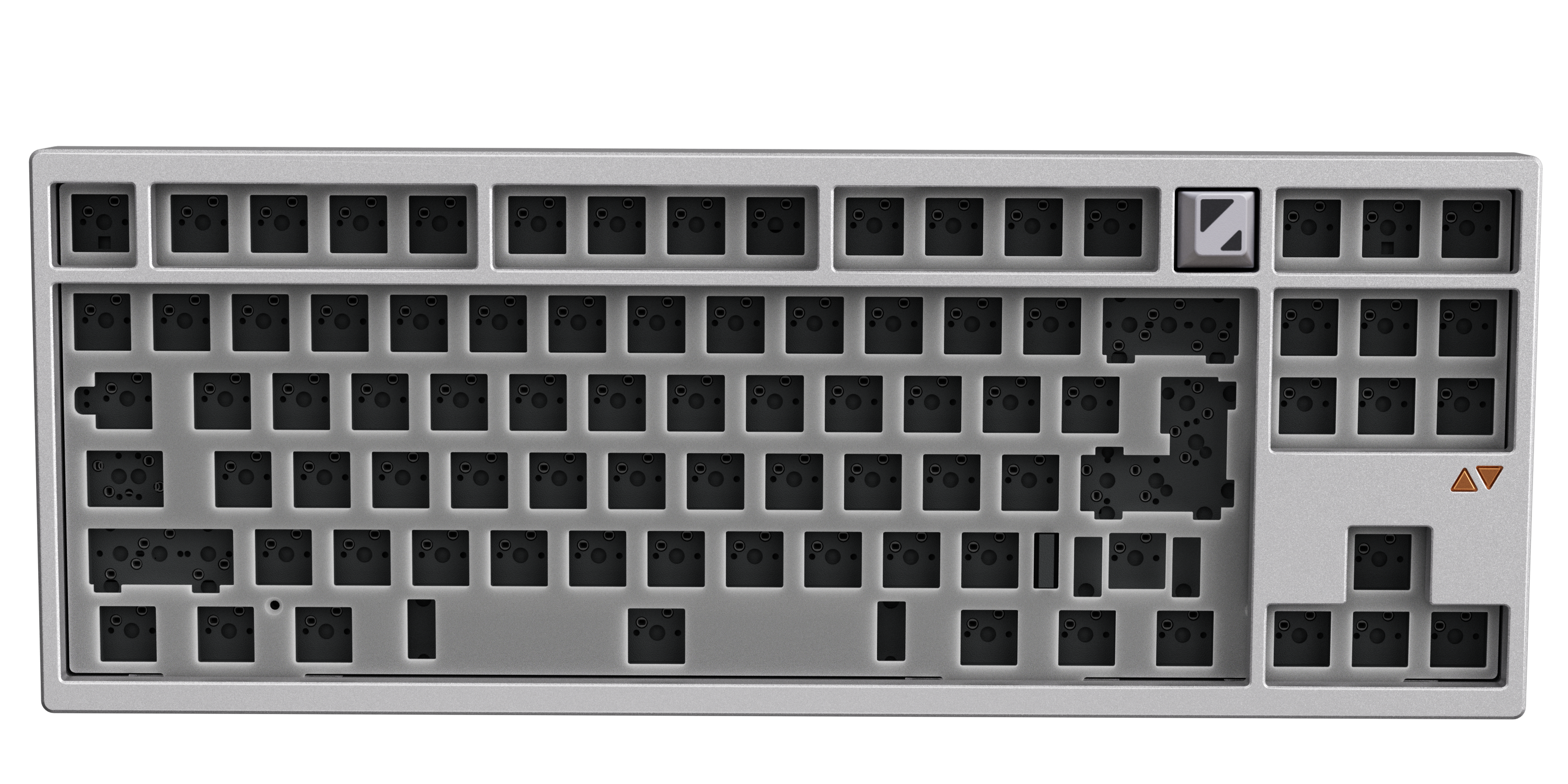

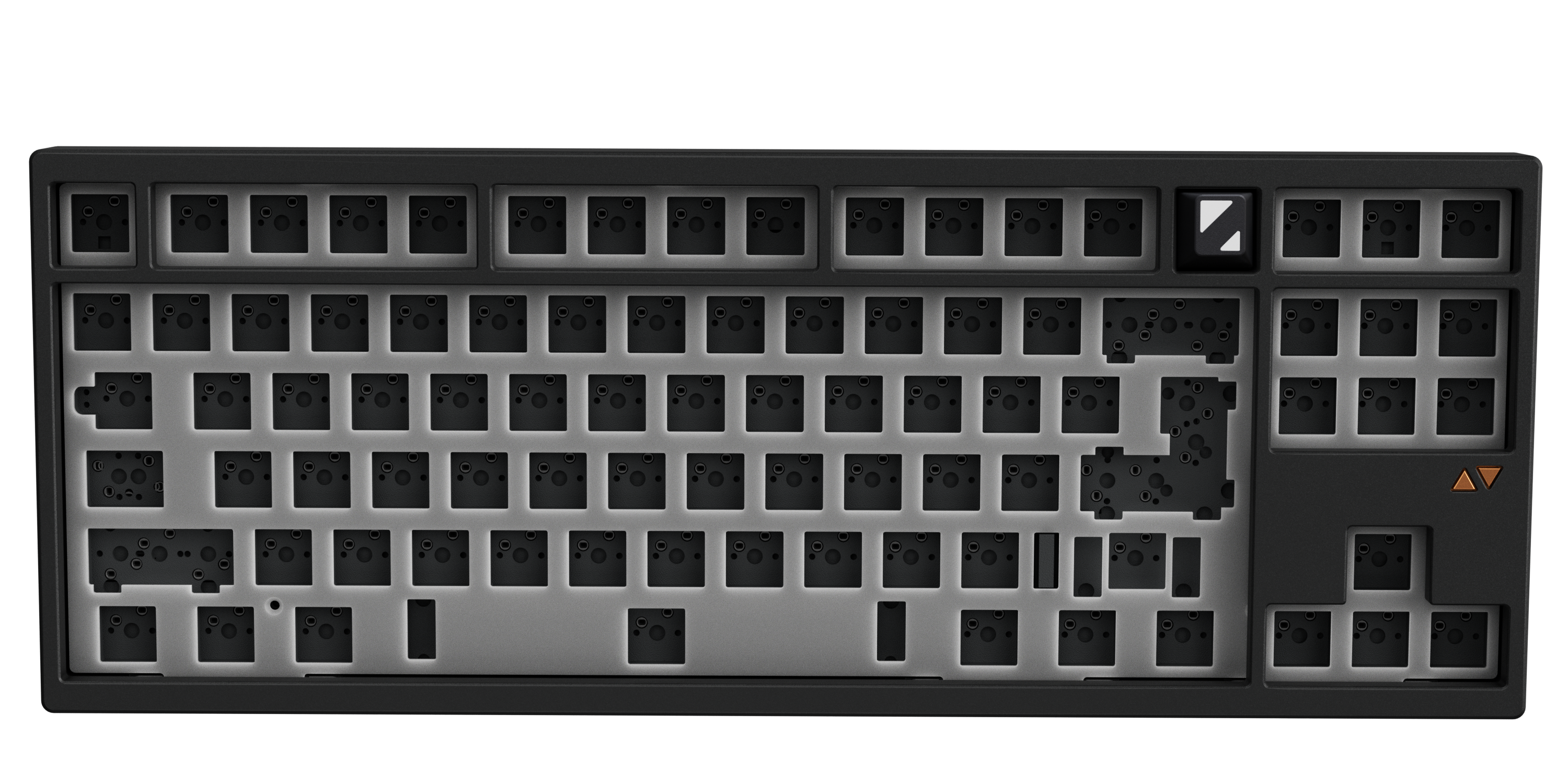

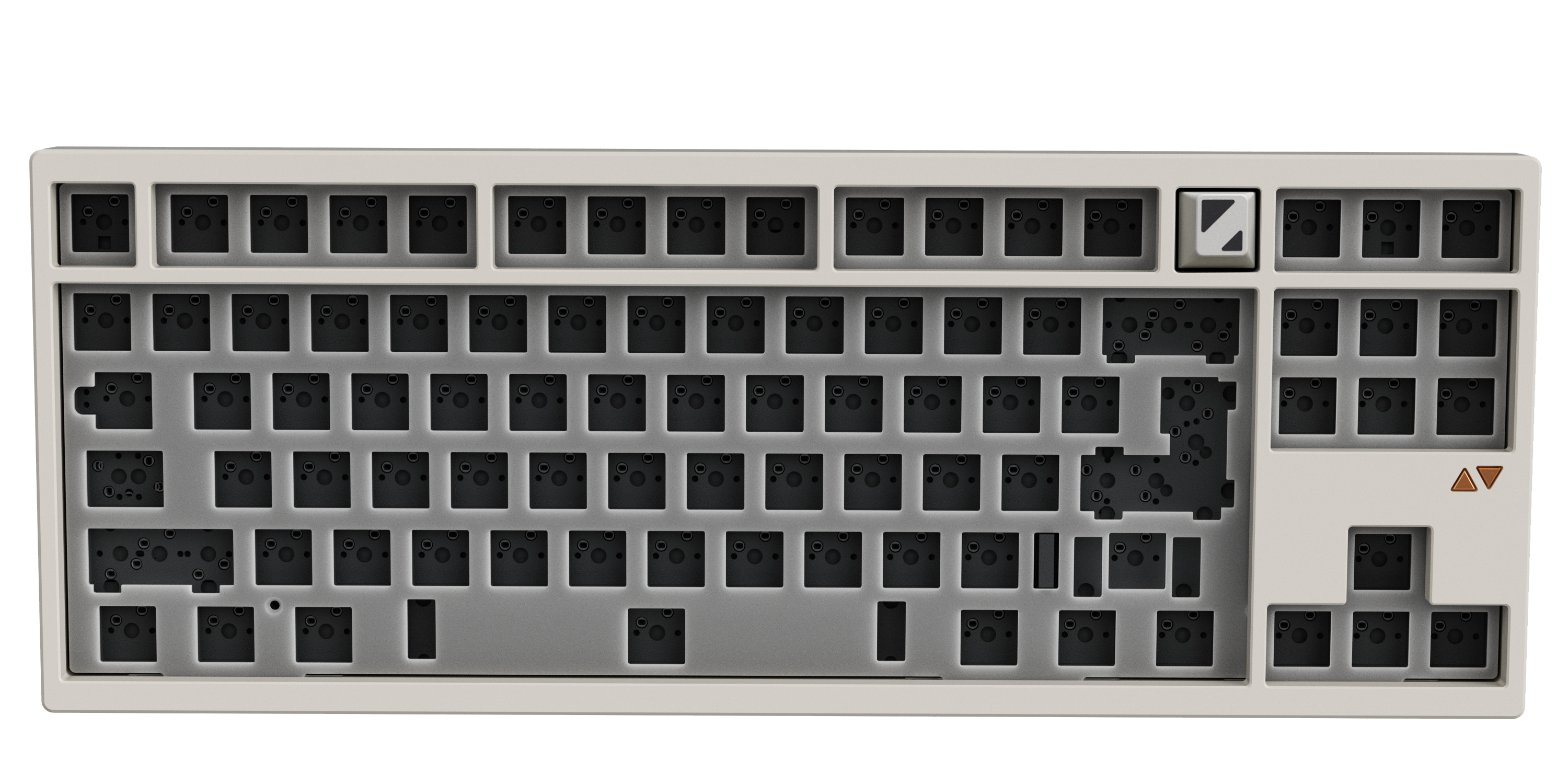

Barebone Kit:
- 1*top case,
- 1*bottom case,
- 1*copper weight,
- 1*copper badge,
- 1*pcb,
- 1*type-c daughter board,
- 1*plate,
- 1*foam kit,
- 1*switch puller&keycaps puller,
- 1*screwdriver,
- 1*USB cable,
- 1*dongle,
- a set of stabilizer
- 1*aluminum artisan keycap
LUMINKEY80 User Manual
![](http://www.luminkey.com/cdn/shop/files/20240618101946.jpg?v=1718706184&width=360)
Luminkey80 Ano-Deep Red
The perfect blend of CNC Deep red and Red copper weight
It has a mysterious name "envelope"
Why is it "envelope"?
Open the stainless steel circular badge on the back and let it tell you.
![](http://www.luminkey.com/cdn/shop/files/20240618101903.jpg?v=1718706138&width=360)
![](http://www.luminkey.com/cdn/shop/files/20240618102130.jpg?v=1718706101&width=360)
![](http://www.luminkey.com/cdn/shop/files/20240618102208.jpg?v=1718706260&width=360)
![](http://www.luminkey.com/cdn/shop/files/20240618101906.jpg?v=1718706338&width=360)
![](http://www.luminkey.com/cdn/shop/files/luminkey80-silver4.jpg?v=1693897640&width=360)
The copper triangular badge on the front, along with the aluminum artisan keycap, echoes the badge for a harmonious frontal profile.
![](http://www.luminkey.com/cdn/shop/files/luminkey80-silver_artisan_keycap.jpg?v=1693814997&width=360)
![](http://www.luminkey.com/cdn/shop/files/luminkey80-silver-badge1.jpg?v=1693815541&width=360)
The copper triangular badge on the front, along with artisanal aluminum keycap, echoes the badge for a harmonious frontal profile.
![](http://www.luminkey.com/cdn/shop/files/65.jpg?v=1693813920&width=360)
![](http://www.luminkey.com/cdn/shop/files/luminkey80-side.jpg?v=1693819918&width=360)
![](http://www.luminkey.com/cdn/shop/files/luminkey80-silver-ESC_key.jpg?v=1701929913&width=360)
Show your style in the detail!
Extra badge offered: Stainless Steel PVD Silver/Black
![](http://www.luminkey.com/cdn/shop/files/badge-silver.jpg?v=1695262605&width=360)
![](http://www.luminkey.com/cdn/shop/files/badge-black_6ff8a7ac-9f74-486c-95f0-f4dc76cf87e2.jpg?v=1695263642&width=360)
![](http://www.luminkey.com/cdn/shop/files/luminkey80-exploded_view.jpg?v=1695370545&width=360)
LUMINKEY80 will bring you:
Clean design | Reliable quality | Excellent typing feel
Non-flex cut PCB and standard PC plate ensure that every key has the same click-click sound.
In order to ensure that the sound of each key with a stabilizer is consistent, we insist on manually adjusting the stabilizer.
The gasket mount makes the typing softer, and brand-new Sylva switches make the sound crisp.
![](http://www.luminkey.com/cdn/shop/files/sylva_switches1.jpg?v=1694071893&width=360)
Sylva Switches
Inspired by the expansive and soothing natural landscapes, Sylva provides a harmonious and comfortable typing experience.
Spec for Sylva switches
· Manufacturer: GATERON
· Switch type: Linear
· Cover: Nylon
· Stem: POM
· Bottom: Nylon
· Spring: Stainless steel (gold-plated)
· Total travel: 3.7±0.3mm
· Operating force: 48±gf
· Total travel force: 55±20gf
